PATENTed rotor technologY

for high performance brushless disc-type motors

The brushless synchronous motors with up to 35 kW of power are superior to conventional electric motors in many ways. Thanks to their flat design, small size and low weight, the robust motors have proven their effectiveness in a huge range of applications for decades. Unlike the PMS F series, the standard version of PMS motors is equipped with two stators. With only a slightly greater length, the double-sided design delivers more torque and higher power while simultaneously having lower inertia.

CAT Electric Drives Product Catalogue e tn

Dynamic & powerful

Patented rotor technology

Flat & flexible

Maintenance-free

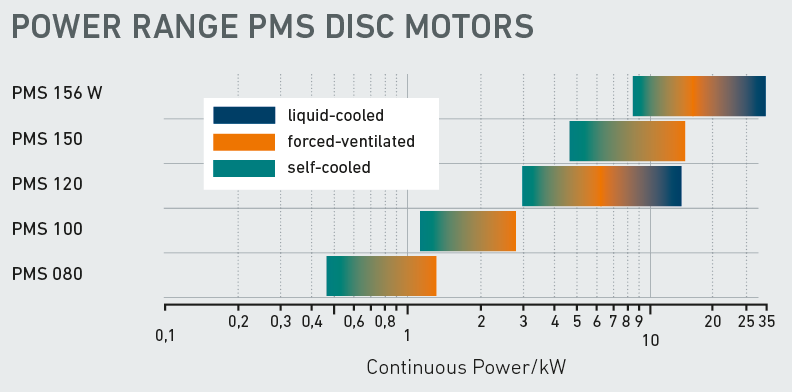

  • Overview
  • PMS 080
  • PMS 100
  • PMS 120
  • PMS 120W
  • PMS 150
  • PMS 156W

PMS Reihe

PMS 080

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 1.00 ... 1.25 kW
Rated load torque: 1.9 ... 3.2 Nm
Intermediate circuit voltage: 24 | 48 VDC

PMS 100

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 1.4 ... 2.7 kW
Rated load torque: 2.23 ... 7.32 Nm
Intermediate circuit voltage: 24 | 48 VDC

PMS 120

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 5.5 ... 8.0 kW
Rated load torque: 9.5 ... 20.5 Nm
Intermediate circuit voltage: 48 | 96 | 330 | 560 VDC

PMS 120W

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 8 ... 13 kW
Rated load torque: 20.7 ... 25.5 Nm
Intermediate circuit voltage: 96 | 330 | 560 VDC

PMS 150

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 8,5 ... 14 kW
Rated load torque: 13.5 ... 33.4 Nm
Intermediate circuit voltage: 48 | 96 | 330 | 560 VDC

PMS 156W

Motor data

Rated speed: 3000 | 4500 | 6000 rpm
Rated power: 18.5 ... 25.0 kW
Rated load torque: 33.4 ... 58,9 Nm
Intermediate circuit voltage: 96 | 330 | 560 VDC

Application area
